工业对辊成型机设计1

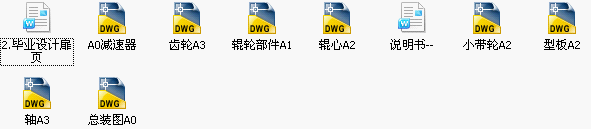

范文编号:JX293 所有图纸,外文翻译。范文字数:21700.页数:78

摘   要
     型煤加工对于有效地利用粉煤资源和保护环境是十分重要的，在我国的能源构成中，煤炭占有十分重要的地位。据统计，在我国能源生产和消费中，煤炭约占总量的75%左右。但是,随着采煤机械化程度的不断的提高，粉煤在原煤中所占的比例也越来越大。粉煤比例的增加不仅降低了散煤的燃烧效率，而且严重地污染了环境。发展型煤是提高粉煤利用率和减少环境污染的重要途径，研究表明，工业锅炉,窑炉使用型煤后可比烧散煤节煤10%~27%，烟尘排放量可减少50%~60%，添加固硫剂后，二氧化硫的排放量可减少35%~50%。因此，发展型煤对我国具有十分重要的现实意义。
本设计为一种用于煤炭成型加工的高压对辊成型机，包括有机架，定对辊轴和动对辊轴设置在机架中部，动对辊轴的两端设置有加压装置，通过加压装置，动对辊轴能移动一定距离，在定对辊轴的轴端有同步外挂齿轮与联轴装置及三级设计减速器相连。该机采用强制加料方式，液压加载和使用安全联轴器，从而使其型煤产品满足生产要求。

关键词：型煤； 型煤加工； 粉煤； 对辊成型机

ABSTRACT
Coal processing for the effective use of coal resources and environmental protection is very important, Coal occupy a very important position in our energy mix. According to statistics, China's energy production and consumption, coal accounts for about 75% of total. However, as the mining mechanization of a continuous increase in coal pulverized coal as a proportion is also growing. Coal proportion of the increase not only reduced the casual coal combustion efficiency, but also seriously polluted the environment. Development of coal briquette is to improve utilization and reduce environmental pollution in important ways, the study shows that industrial boilers, Kiln use briquette after comparable saving coal burning coal powder 10% ~ 27%, soot emissions can be reduced 50% ~ 60%. After the addition of sorbent , and sulfur dioxide emissions can be reduced 35% ~ 50%. Therefore, the development of China's coal is of great practical significance.
The design of the coal used in a high-pressure molding and processing of roll forming machines, including rack, set to roll axis and move on roller shaft installed in the central rack, moving to the ends of roller shaft equipped with pressure device, through compression devices, move to roll axis can move a certain distance. In determining the roll axis of the shaft to keep pace with the pylon gear coupling device design and three-reducer. The aircraft introducing compulsory feeding, hydraulic loading and the use of safety coupling, thus briquette products meet production requirements.

Keywords : briquette; Coal processing; Coal; Right roll forming machine

目    录

1 概述 １
1.1型煤发展方向 １
1.1.1发展型煤产业的重要性 １
1.1.2型煤产业及技术的现状 １
1.2国内外型煤发展概况 ２
1.2.1国外型煤概况 ２
1.2.2 国内型煤概况 ４
1.3对辊成型机的发展概况 ４
1.3.1对辊成型机的发展展状况 ４
1.3.2对辊成型机的成型机理 ５
2.对辊成型机的方案设计 ７
2.1选择电动机 ７
2.1.1选择电动机的类型和结构形式 ７
2.1.2选择电动机的容量 ７
2.2计算传动装置的总传动比并分配各级传动比 ９
2.2.1传动装置的总传动比 ９
2.2.2分配各级传动比 ９
2.3 V带的设计 １０
2.4 减速器的设计及计算 １３
2.4.1 传动装置运动参数的计算 １３
2.4.2 Ⅰ轴齿轮设计计算 １４
2.4.3 Ⅱ轴齿轮设计计算 １９
2.4.4 Ⅲ轴齿轮设计计算 ２５
2.4.5 减速器轴的设计计算 ３０
2.5对辊机构的设计 ５２
2.5.1 对辊轴的设计 ５２
2.5.2 同步齿轮的设计 ５８
2.6液压加载系统 ６３
2.6.1液压元件的选型设计。 ６３
2.6.2液压系统维护与管理 ６４
结论 ６６
参考文献 ６７
翻译部分 ６９
英文原文 ６９
中文翻译 ７４
致  谢 ７８
